Temperature Monitoring Controls
Streivor™ Air Systems monitoring controls can be installed in commercial kitchen ventilation hoods and/or ducts to monitor temperatures in accordance with NFPA 96 Section 11.1.1.

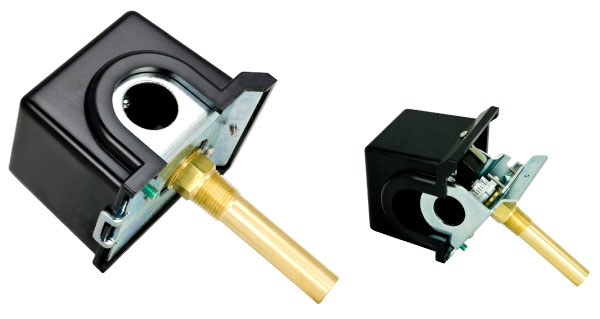

Single Monitoring Controls
NFPA 96 Compliant
Electrical Equipment:
Section 9.2.1
Wiring systems of any type shall not be installed in ducts.
Section 9.2.2
Only where specifically listed for such use shall motors, lights, and other electrical devices be permitted to be installed in ducts or hoods or to be located in the path of travel of exhaust products.
Section 11.1.1
Exhaust systems shall be operated whenever cooking equipment is turned on.

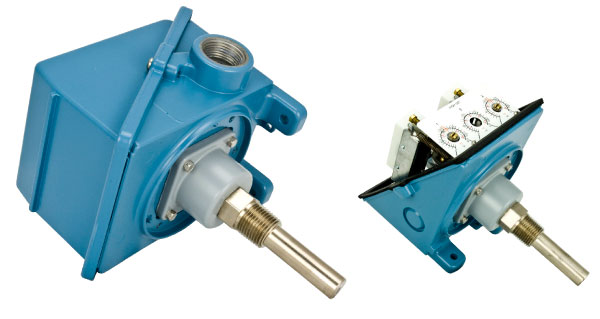

Dual Monitoring Controls
NFPA 96 Compliant
Electrical Equipment:
Section 9.2.1
Wiring systems of any type shall not be installed in ducts.
Section 9.2.2
Only where specifically listed for such use shall motors, lights, and other electrical devices be permitted to be installed in ducts or hoods or to be located in the path of travel of exhaust products.
Section 11.1.1
Exhaust systems shall be operated whenever cooking equipment is turned on.

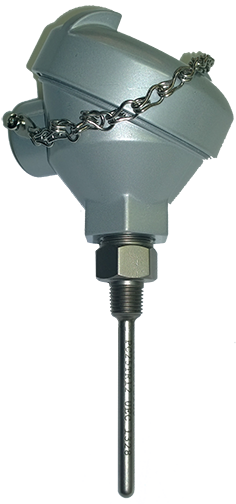

RTD Sensor Type
RTP1 – Platinum; DIN 0.00385; 100 ohm +/- 0.12% @ 0°C; 3-wire construction
ASSEMBLY STYLE15 – Sheath with cast aluminum head and 1/2″ NPT welded stainless steel process connection; head conforms to NEMA 4 requirements; 3/4″ NPT conduit connection; ceramic terminal block; gasketed screw cover with stainless steel chain
SHEATH DIAMETER (in inches)7 – 1/4 (0.250)
TEMPERATURE RANGE – Minimum and maximum operating temperatures1 – -45 to 260°C (-50 to 500°F)
SHEATH LENGTHL#
ASSEMBLY OPTIONSPC25 1/4″ NPT process connection
Hole Seals and Patches
Quik-Seal
The Quik-Seal produces weld-tight seals, able to withstand internal pressures of 5000 PSI. They offer internal pipe threads and are offered in 5″ standard pipe sizes: 1/4″, 3/8″, 1/2″, 34″ and 1″
Compression Seal
The Compression seal produces a liquid-tight seal and is the superior choice for swift installation. Available in 7 standard sizes: 3/8″ tube, 1/2″Tube & 1/4″ Pipe, 5/8″ Tube & 1/4″ Pipe, 5/8″ Tube & 3/8″ Pipe, 1/2″ Pipe, 3/4″ Pipe, and 1″ Pipe.
Compression Seal
The Compression seal produces a liquid-tight seal and is the superior choice for swift installation. Available in 7 standard sizes: 3/8″ tube, 1/2″Tube & 1/4″ Pipe, 5/8″ Tube & 1/4″ Pipe, 5/8″ Tube & 3/8″ Pipe, 1/2″ Pipe, 3/4″ Pipe, and 1″ Pipe.
