Demand Control Kitchen Ventilation (DCKV)

  • Constant Speed Fan Control
  • Duct Temperature Monitoring
  • HMI – 3.7″ Monochrome Touch Screen
  • PLC – Building Management Communication
  • Optional Motor Starters with Overload Protection
UL listed and NFPA 96 logos

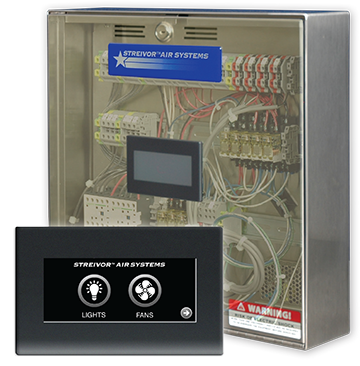

Human Machine Interface 3.7″ Touch Screen, Monochrome, 240 x 100 pixels
Programmable Logic Control PLC provides advanced control logic and system communication
BMS Communication Modbus TCP via Ethernet
Hood Temperature Monitors Resistance Temperature Detectors, Exhaust Collar Mounted
Ambient Temperature Monitor Room Ambient Temperature Monitor
Digital Outputs Exhaust and/or MUA Fans, Light Circuit, Electric Gas Valve Circuit
FSS Integration Upon Fire Suppression System actuation, automatically shunts power to MUA fans and Electric Gas Valve, powers the Exhaust Fan. Provides system Alarm Signal and Manual Reset Relay for Gas Valve
Fan Control Hood Fans, Off/On 100%
Light Control Hood Lights, Off/On
Enclosure Type I Stainless Steel Enclosure
Alarms Local and BMS Alarm Notification

DemandAire Bronze

Duct Temperature Monitoring

DemandAire Bronze

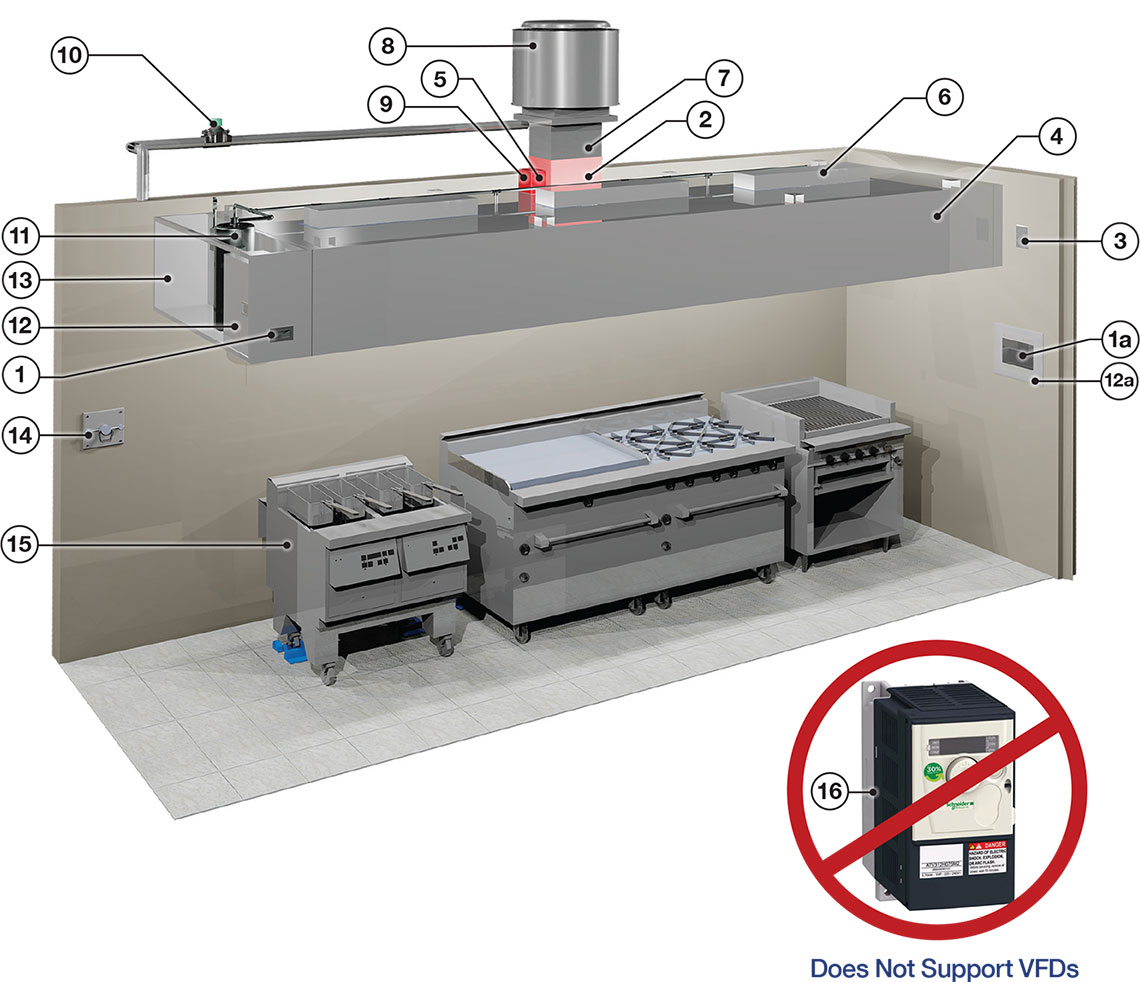

1. HMI Cabinet Mounted

1a. HMI Wall Mounted
(Recessed or Surface Mounted Optional)

2. Duct Temperature Monitoring

3. Ambient Temperature Monitoring

4. Wall Canopy Hood

5. Resistance Temperature Detector

6. Light Fixtures

7. Exhaust Duct

8. Exhaust Fan

9. Exhaust Collar Access Enclosure10. Electric Gas Valve

11. Fire Suppression System

12. DemandAire Control Panel

12a. DemandAire Control Panel Wall Mounted
(Recessed or Surface Mounted Optional)

13. Hood Utility Cabinet

14. Fire Suppression System Pull Station

15. Cooking Appliances

16. Variable Frequency Drives (VFDs) not supported by DemandAire Bronze DCKV System. Motor Starters with overload protection optional.
