Sinks

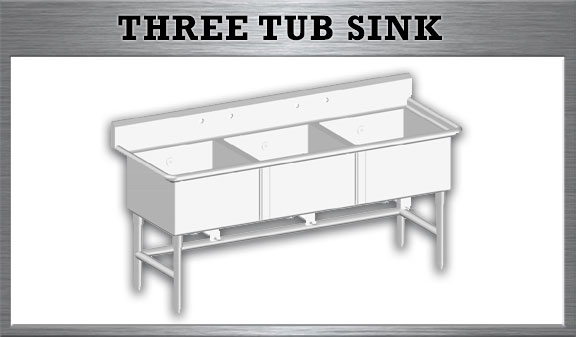

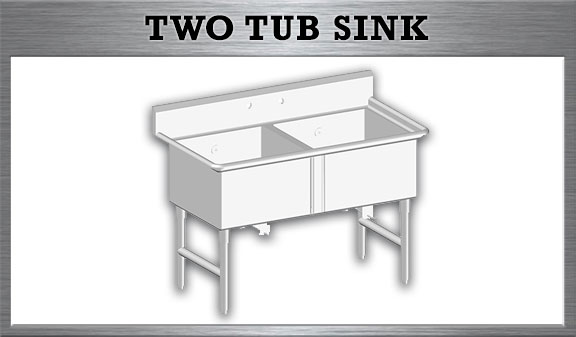

Our selection of compartment sinks includes models with multiple well configurations, ranging from one to three tub sinks as well as mop sinks. Single-compartment styles are ideal for use in compact kitchens, whereas models with multiple wells allow you to rinse, wash, or sanitize dishes.
STANDARD FEATURES
- All Materials to be Type 304 Stainless Steel
- Top and tub to be 16 Gauge
- 1 5/8″ 16 Gauge Legs and Bracing
- Sink Tub(s) 12″ Deep
- Backsplash 8″ High
- Right and Left End Rolled Edge 2.25″ High
- Crossbracing Front and Back
- Stainless Steel Bullet Feet
- 3 1/2″ Embossed Drain Opening Centered in Tub (No Drain Fitting)
OPTIONS
- Drainboard on Left or Right or Both Ends
- Top and tub to be 14 Gauge
- Sink Tub(s) 14″ Deep
- Backsplash 12″ High
- Right and/or Left End Splash to Match Backsplash
- Crossbracing Front and Back & Left and Right
- Stainless Steel Bullet Feet with 3 1/2″ Mounting Flange
- Lever Waste
- Lever Waste with Overflow
- Sound Deadner
- 1 5/8″ 14 Gauge Legs and Bracing

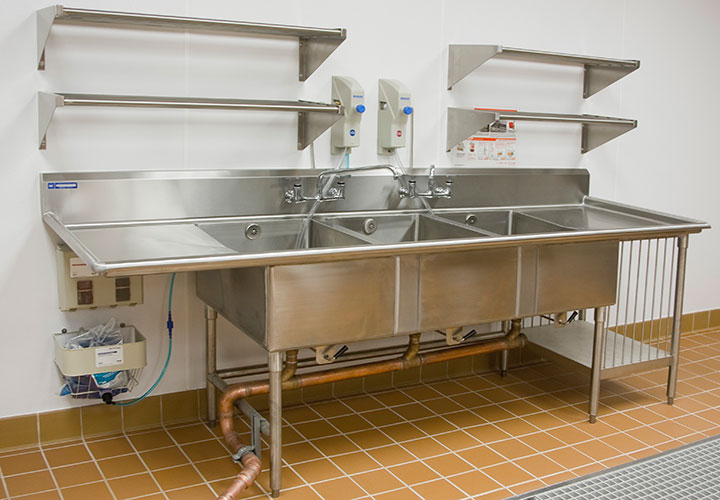

All Streivor Sinks are fabricated from 16 gauge Type 304 stainless steel and our welded to form a one piece sanitary unit. Polished to a #3 or #4 finish. Backsplashes are 8″ high with a 1″ return to the wall at 45º and a 1″ horizontal. The front and ends have a 1 1/2″ diameter sanitary roll. Sink tubs are 12″ deep and are furnished with a 3 1/2″ center drain opening. Closed type leg gussets are welded to the bottom of the sink. Legs are 1 5/8″ OD tubular stainless steel with adjustable sanitary stainless steel bullet feet. Sinks meet or exceeds NSF requirements.

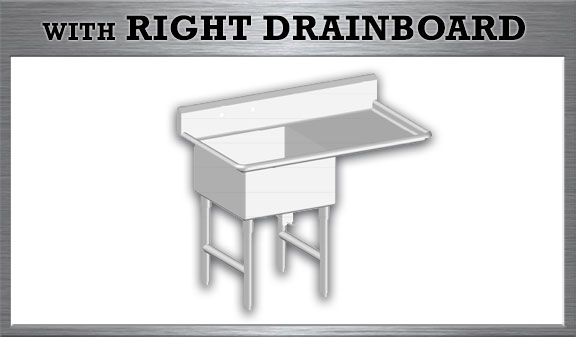

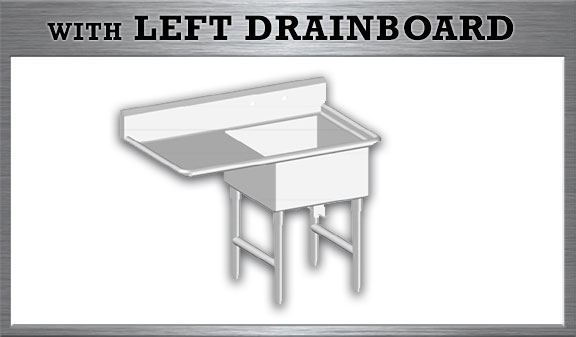

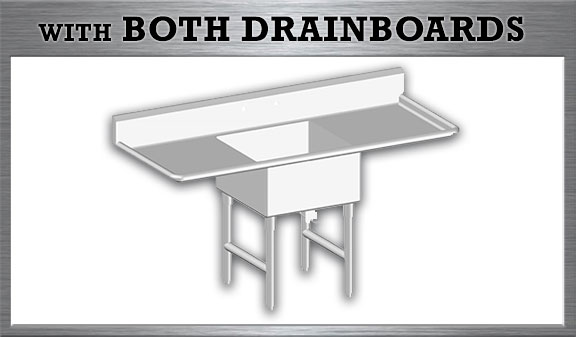

Tub Drainboard Options

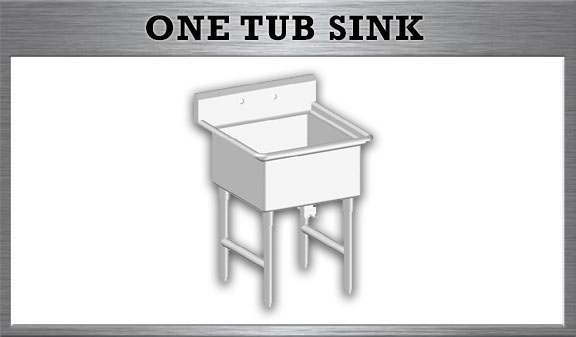

Drainboard configurations can be added to 1, 2 and 3 tub sinks.
Additional Sinks

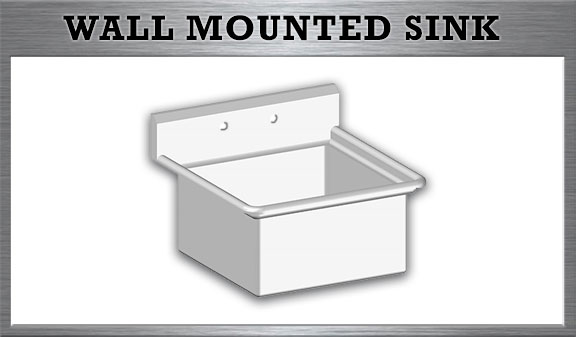

Wall Mounted Sink backsplash is 6″ high with a 1″ return to the wall at 45º and a horizontal. Tub is furnished with a 1 3/8″ center drain opening. Supplied with a Z-bracket for wall installation.

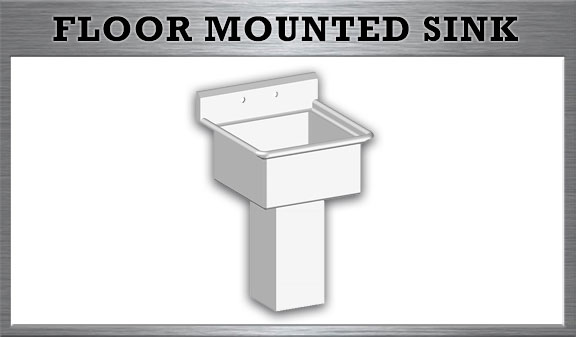

Floor Mounted Sink backsplash is 6″ high with a 1″ return to the wall at 45º and a horizontal. Tub is furnished with a 1 3/8″ center drain opening. Supplied with a stainless steel pedestal for floor installation.

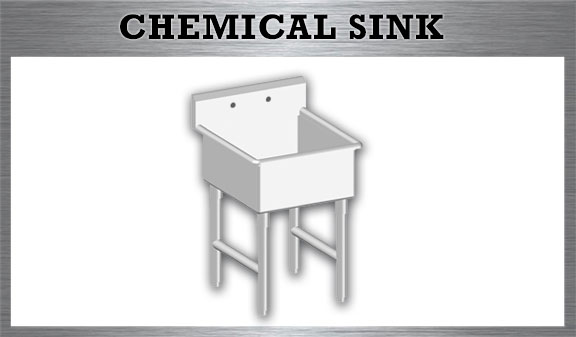

Chemical Sink backsplash is 8″ high with a 1″ return to the wall at 45º and a horizontal. The Front and both ends have a 1 1/2″ sanitary roll. Sink tub has a 3 1/2″ center drain opening. Closed type leg gussets are welded to the bottom of the sink.

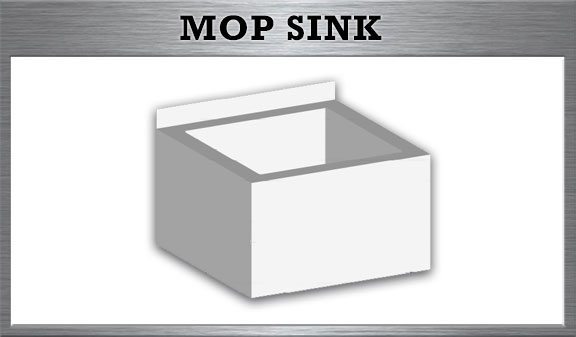

Tub is furnished with 2″ center drain opening. 2″ ledge all around the tub with extends outward from the center and then turns down 90º and extends 12″ to the floor on the sides and front up 90º for 2″ in rear.

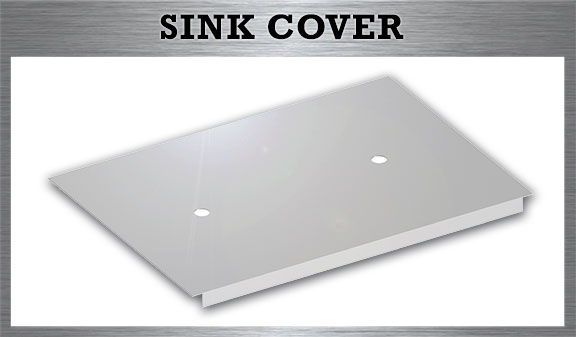

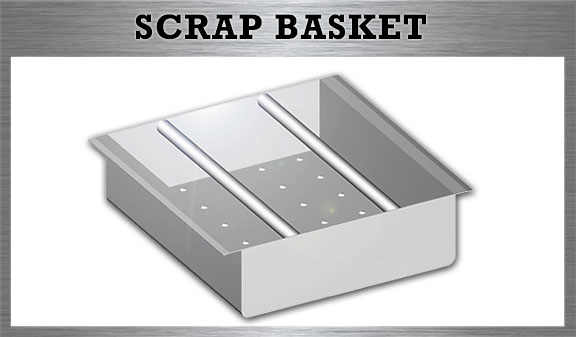

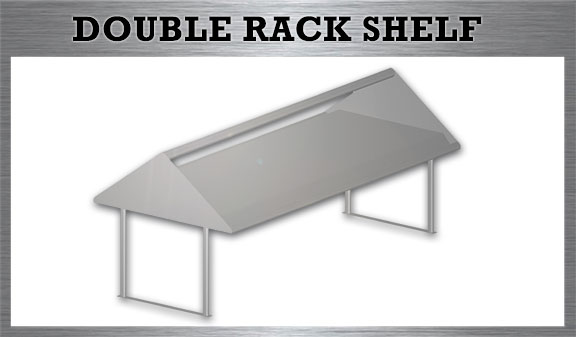

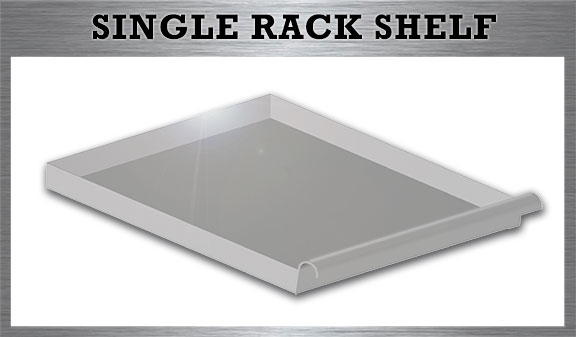

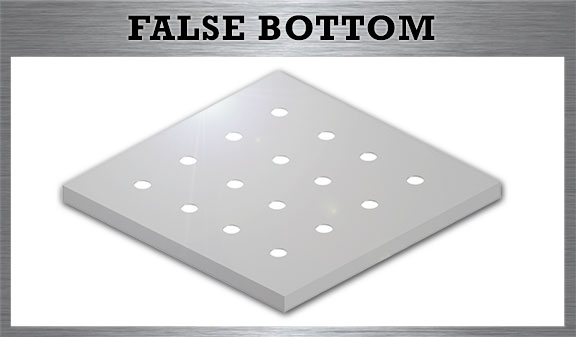

Sink Accessories
