Shelves

Wall mounted shelving will dramatically increase your storage space, and when installed above a prep table, it keeps often used items readily available. Single shelves also make it easy to customize your storage space for exactly what you need, rather than be stuck with a cumbersome pre-sized shelving system. You can add a wider shelf where space permits and a narrower shelf just where it’s needed. Wall mounted shelves are especially useful for small kitchens or spaces where having a separate floor mounted system is impractical.

Stainless Steel Shelves

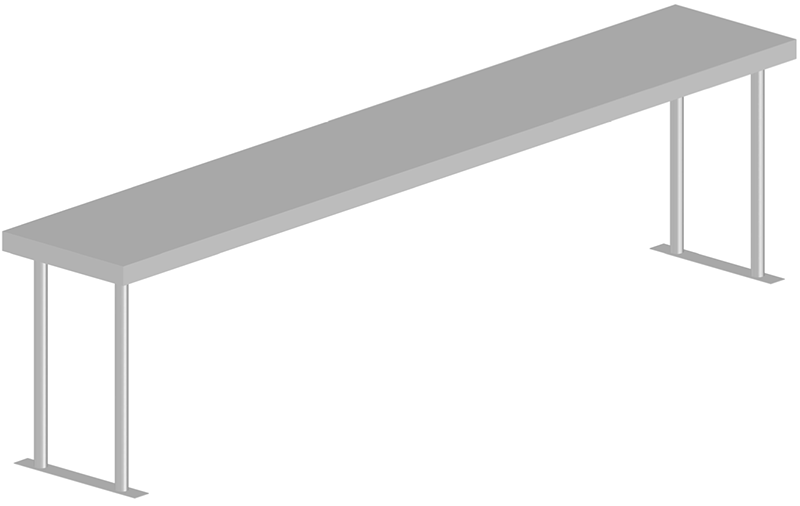

Single Tier Table Shelf

Streivor’s Single Tier Table Shelf is constructed of 16 Gauge Type 304 Series Stainless Steel. Edges are turned down 1 1/2″ and welded and polished to a #3 or #4 finish. Shelf is 18″ above work surface and is supported by 1″ OD tubular stainless steel welded to underside of the shelf and secured to mounting brackets.

Single Tier Table Shelves

STANDARD FEATURES

  • 16 Gauge Top
  • Mounting Pads

OPTIONAL FEATURES

  • 14 Gauge Top
  • Wedge Lock Fastener
  • Sound Deadner
  • Sink Tub(s) 20″x20″x12″ Deep

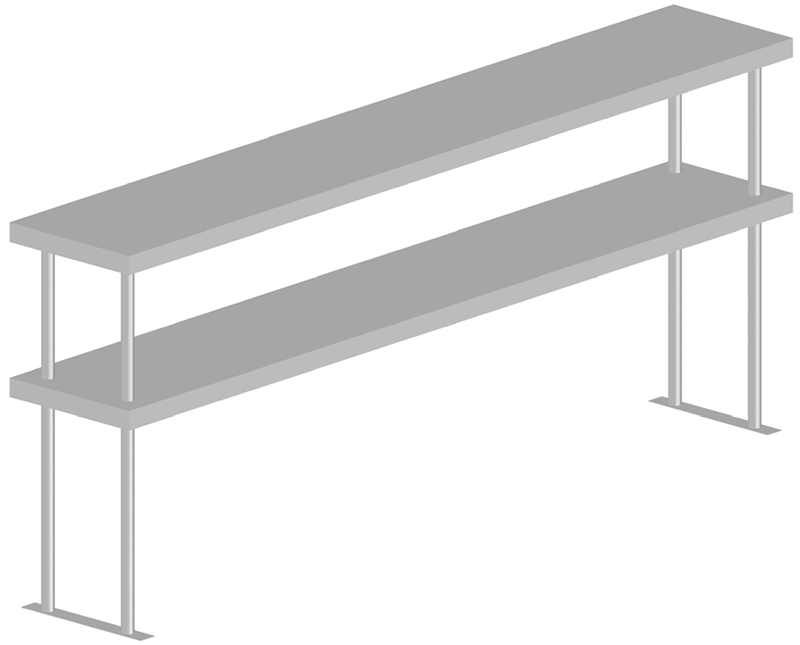

Double Tier Table Shelf

Streivor’s Double Tier Table Shelf is constructed of 16 Gauge Type 304 Series Stainless Steel. Edges are turned down 1 1/2″ and welded and polished to a #3 or #4 finish. Shelf is 18″ above work surface and is supported by 1″ OD tubular stainless steel welded to underside of the shelf and secured to mounting brackets.

Double Tier Table Shelves

STANDARD FEATURES

  • 16 Gauge Top
  • Mounting Pads

OPTIONAL FEATURES

  • 14 Gauge Top
  • Wedge Lock Fastener
  • Sound Deadner
  • Sink Tub(s) 20″x20″x12″ Deep

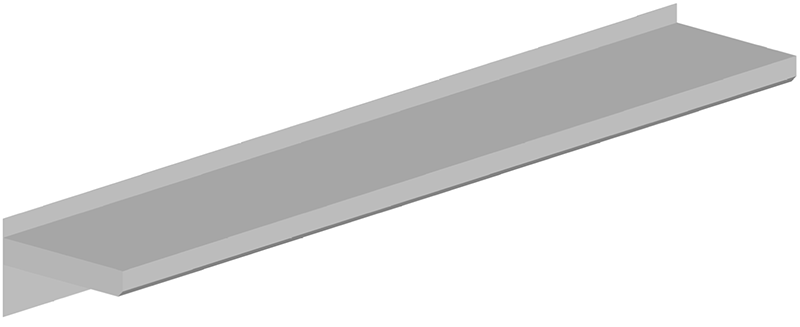

Wall Shelf Sides Turned Down

Streivor’s Stainless Steel Wall Shelf with Sides Turned Down is constructed of 16 Gauge Type 304 Series Stainless Steel. Back edge is turned up 1 1/2″ and welded and polished to a #3 or #4 finish. Side and front edge is turned down 1 1/2″. Support brackets are supplied on 6 ft. maximum centers.

Wall Shelves Sides Turned Down

STANDARD FEATURES

  • 16 Gauge Top
  • 16 Gauge Support Bracket
  • Back Tuned up 2″
  • Front Tuned Down 2″
  • Left and Right Tuned Down 2″

OPTIONAL FEATURES

  • 14 Gauge Top
  • 14 Gauge Support Bracket

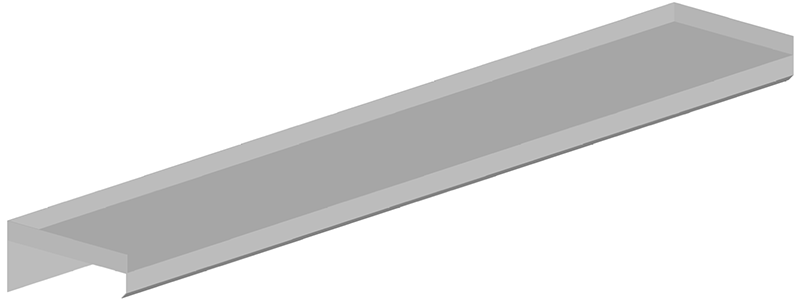

Wall Shelf Sides Turned Up

Streivor’s Stainless Steel Wall Shelf with Sides Turned Up is constructed of 16 Gauge Type 304 Series Stainless Steel. Back and side edges are turned up 1 1/2″ and welded and polished to a #3 or #4 finish. Front edge is turned down 1 1/2″. Support brackets are supplied on 6 ft. maximum centers.

Wall Shelves Sides Turned Up

STANDARD FEATURES

  • 16 Gauge Top
  • 16 Gauge Support Bracket
  • Back Tuned up 2″
  • Front Tuned Down 2″
  • Left and Right Tuned Down 2″

OPTIONAL FEATURES

  • 14 Gauge Top
  • 14 Gauge Support Bracket
