arrowsCanopy Single Filter Bank CKV Hoods

Type I Canopy Single Filter Bank CKV Hoods are designed to capture and contain grease laden vapors and gases from cooking operations. Streivor hoods utilize thermal updraft technology and industry leading grease extraction to provide superior performance with low operating costs.

Each Hood model has been tested over specific types of cooking equipment and for a maximum appliance temperature. This allows the ventilation designer to choose the correct ventilation hood – one which is specifically designed to exhaust all of the contaminated air being produced from the cooking equipment under it, while exhausting the lowest amount of air possible.

Type I Canopy Single Filter Bank Commercial Kitchen Ventilation Hood

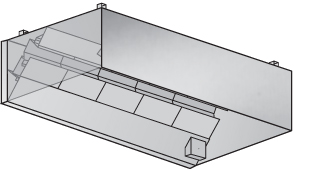

WCBD Hood

Wall Canopy Box Design

WCBD Hood for Commercial Kitchen
NSF, NFPA and UL Listed logos
The WCBD Wall Canopy Box Design Non-Compensating Ventilation CKV Hood has been specifically designed, engineered, and tested to exhaust and filter contaminated air produced from commercial cooking equipment.
Model/Series Min. Exhaust CFM/FT Cooking Appliances Max Temp
WCBD-150 150 Steamers, kettles, ovens, tilting skillets, cheese melters, ranges, pizza ovens, electric griddles, electric fryers. 400°F
WCBD-200 200 All of the above plus gas griddles, gas fryers, hot tops, upright broilers. 450°F
WCBD-250 250 All of the above plus woks, electric charbroilers, gas charbroilers. 600°F
WCBD-300 300 All of the above plus chainbroilers, mesquite broilers, charcoal broilers. 700°F

SAWCBD Hood

SmartAire™ Wall Canopy Box Design

SmartAire energy efficient Commercial Kitchen Hoods
NSF, NFPA and UL Listed logos

Lower the exhaust and makeup air flow by up to 40%

The SAWCBD SmartAire™ Wall Canopy Box Design Ventilation Hood has been specifically designed, engineered, and tested to exhaust and filter contaminated air produced from commercial cooking equipment.

Streivor Air Systems™ hoods with patented SmartAire™ technology are one of the most energy efficient wall canopy hoods ever invented.

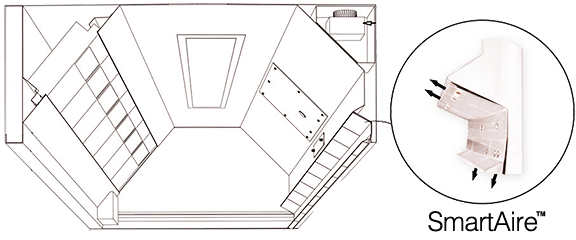

Streivor Air Systems™ Wall Canopy Box Design CKV Hoods with SmartAire™ technology are fabricated with two continuous adjustable high velocity low volume streams of air along the length of the front interior of the hood. Each CKV hood is equipped with one lower and one upper air stream that work in combination to increase the capture and containment efficiency of the hood.

Each air stream is positioned and directed to obtain the maximum positive benefits of a stream of air with the minimum amount of negative turbulence.

The lower air stream directs a stream of air at an inward downward direction towards the front of the cooking equipment. The upper air stream directs a stream of air at an inward and upward direction toward the exhaust opening in the ExtractAire™ cartridge filter.

Model/Series Min. Exhaust CFM/FT Cooking Appliances Max Temp
SAWCBD-120 120 Steamers, kettles, ovens, tilting skillets, cheese melters, ranges, pizza ovens, electric griddles, electric fryers. 400°F
SAWCBD-150 150 All of the above plus gas griddles, gas fryers, hot tops, upright broilers. 450°F
SAWCBD-180 180 All of the above plus woks, electric charbroilers, gas charbroilers. 600°F
SAWCBD-220 220 All of the above plus charbroilers, mesquite broilers, charcoal broilers. 600°F+

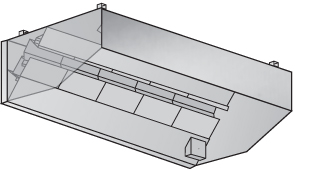

WCLC Hood

Wall Canopy Low Clearance

WCLC Wall Canopy Low Clearance Kitchen Hood
NSF, NFPA and UL Listed logos
The WCLC Wall Canopy Low Clearance CKV Hood has been specifically designed, engineered, and tested to exhaust and filter contaminated air produced from commercial cooking equipment. The WCLC can be used when obstructions or low ceilings prohibit the use of a full size canopy hood.
Model/Series Min. Exhaust CFM/FT Cooking Appliances Max Temp
WCLC-150 150 Steamers, kettles, ovens, tilting skillets, cheese Melters, ranges, pizza ovens, electric griddles, electric fryers. 400°F
WCLC-200 200 All of the above plus gas griddles,gas fryers, hot tops, upright broilers. 450°F
WCLC-300 300 All of the above plus woks, electric charbroilers, gas charbroilers. 600°F

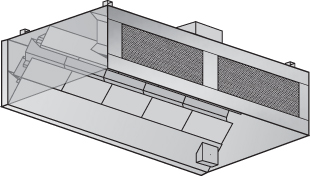

WCFS Hood

Wall Canopy Front Supply

WCFS Wall Canopy Front Supply Hood
NSF, NFPA and UL Listed logos
The WCFS Wall Canopy with Front Supply Air Non-Compensating Commercial Kitchen Ventilation Hood has been designed, engineered, and tested to exhaust and filter contaminated air produced from commercial cooking equipment. The WCFS can supply up to 90% of the make-up-air through the front of the hood.
Model/Series Min. Exhaust CFM/FT Cooking Appliances Max Temp
WCFS-150 150 Steamers, kettles, ovens, tilting skillets, cheese melters, ranges, pizza ovens, electric griddles, electric fryers. 400°F
WCFS-200 200 All of the above plus gas griddles, gas fryers, hot tops, upright broilers. 450°F
WCFS-250 250 All of the above plus woks, electric charbroilers, gas charbroilers. 600°F
WCFS-300 300 All of the above plus charbroilers, mesquite broilers, charcoal broilers 700°F

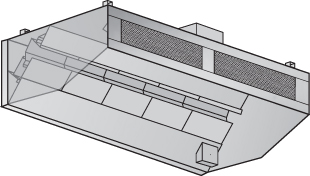

LCFS Hood

Low Canopy Front Supply

LCFS Low Clearance Front Supply Hood for Commercial Kitchen
NSF, NFPA and UL Listed logos
The LCFS Wall Canopy Low Clearance with Front Supply Air Non-Compensating Ventilation Hood has been specifically designed, engineered, and tested to exhaust and filter contaminated air produced from commercial cooking equipment. The LCFS can be used when obstructions or low ceilings prohibit the use of a full size canopy hood.
Model/Series Min. Exhaust CFM/FT Cooking Equipment Max Temp
ISPC 200 200 Pizza Conveyor 450°F

wcaf-tag

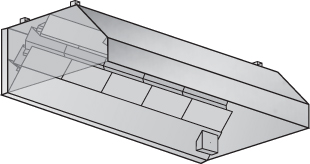

Wall Canopy Angle Front

WCAF-TypeI
NSF, NFPA and UL Listed logos
The WCAF Wall Canopy Low Clearance Design Commercial Kitchen Ventilation Hood has been specifically designed, engineered, and tested to exhaust and filter contaminated air produced from commercial cooking appliances. The WCAF can be used when obstructions or low ceilings prohibit the use of a full size canopy hood.
Model/Series Min. Exhaust CFM/FT Cooking Appliances Max Temp
WCAF-150 150 Steamers, kettles, ovens, tilting skillets, cheese melters, ranges, pizza ovens, electric griddles, electric fryers. 400°F
WCAF-200 200 All of the above plus gas griddles, gas fryers, hot tops, upright broilers. 450°F
WCAF-300 300 All of the above plus woks, electric charbroilers, gas charbroilers. 600°F

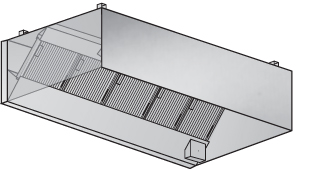

WCFL Hood

Wall Canopy Wok Range

WCBD Wall Canopy Hood for Commercial Kitchen
NSF, NFPA and UL Listed logos
The WCFL Wall Canopy Wok Range CKV Hood is designed for use over Wok ranges and Charbroilers and has been specifically designed, engineered, and tested to exhaust and filter contaminated air produced from commercial cooking appliances.
Model/Series Min. Exhaust CFM/FT Cooking Appliances Max Temp
WCFL-275 275 Woks and gas charbroilers. 600°F
WCFL-325 325 All of the above plus chainbroilers, mesquite broilers, charcoal broilers. 700°F

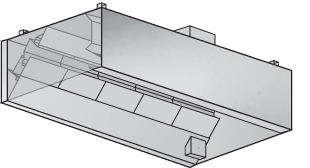

CWCC Hood

Compensating Wall Canopy Combination

CWCC Hood for Commericial Kitchens
NSF, NFPA and UL Listed logos
The CWCC Compensating Wall Canopy with combination Internal and Downward Supply Air Ventilation CKV Hood has been designed, engineered, and tested to exhaust and filter contaminated air produced from commercial cooking equipment.

The CWCC can supply up to 10% tempered or non-tempered make-up-air internally into the hood capture area or downward over the chef, thus enabling the ventilation designer to control the climate around the chef and reducing the amount of conditioned air being exhausted from the building.

Model/Series Min. Exhaust CFM/FT Max. Supply Air CFM/FT Cooking Appliances Max Temp
CWCC-200 200 20 Steamers, kettles, ovens, tilting skillets, cheese melters, ranges, pizza ovens, electric griddles, electric fryers, gas griddles, gas fryers, hot tops, upright broilers. 450°F
CWCC-250 250 25 All of the above plus woks, electric charbroilers, gas charbroilers. 600°F
