DemandAire DemandAire Platinum

Demand Control Kitchen Ventilation (DCKV)

  • Enhanced Variable Speed Fan Motor Control
  • Hood Specific Air Flow Control
  • Hood Area Temperature Monitoring
  • Zonal Temperature Monitoring
  • Motorized Balancing Dampers
  • HMI – 8.4″ Color Touch Screen with Audio & Video
  • PLC — Building Management Communication
  • Programmable Time Clock
  • Optional Variable Frequency Drives
STANDARD FEATURES DESCRIPTION

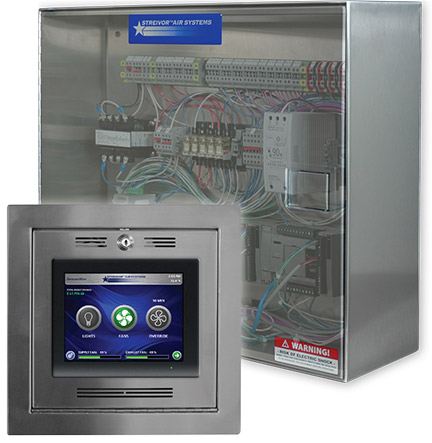

Human Machine Interface

8.4″ Touch Screen(s), Color, 800 x 600 pixels, PDF Storage/Data Logging (32 GB SD Card), Video (MP4), Audio

Programmable Logic Control

PLC provides advanced control logic and system communication

BMS Communication

Modbus TCP via Ethernet

32 RTD’s Monitors

Resistance Temperature Detectors, Hood Canopy and/or Duct Collar Mounted/span>

Hood Temperature Monitors

Resistance Temperature Detectors, Exhaust Collar Mounted

Ambient Temperature Monitor

Room Ambient Temperature Monitor(s)

Digital Outputs

Exhaust and/or MUA Fans, Light Circuit(s), Electrical Gas Valve Circuit(s), Motorized Balancing Damper Circuit(s)

Analog Outputs

4-20 mA or 0-10 VDC signals for Variable Speed Motor Control for fans or Motorized Balancing Dampers

Motorized Dampers

Pre-programmed Motorized Balancing Damper Control

FSS Integration

Upon Fire Suppression System actuation, automatically shunts power to MUA Fans and Electric Gas Valve, powers the Exhaust Fan Circuit(s), opens Motorized Balancing Dampers, provides system Alarm Signal and Manual Reset Relay for Gas Valve

Programmable Time Clock

24/7 Scheduling of CKV System, Fans, Lights and other DemandAire accessories

Energy Analysis

24/7 DCKV Energy Usage and Cost Savings Analysis

Auto Exhaust Fan Control

Automatically powers the Exhaust Fan circuit(s) when the RTDs detect elevated temperatures inside of a hood

Fan Control

Hood Fans, Off/On 0-100% Variable

Light Control

Hood Lights, Off/On

Enclosure

Type I Stainless Steel Enclosure(s)

Alarms

Local and BMS Alarm Notification with Alarm Logging

DemandAire Platinum

Zonal Temperature Monitoring
Area Temperature Monitoring

1. HMI Wall Mounted (Recessed Shown)

2. Zonal Temperature Monitoring

3. Ambient Temperature Monitoring

4. Wall Canopy Hood

5. Resistance Temperature Detectors

6. Light Fixtures

7. Exhaust Duct

8. Exhaust Fan

9. Access Enclosure

10. Electric Gas Valve

11. Fire Suppression System

12. DemandAire Control Panel

13. Hood Utility Cabinet

14. Fire Suppression System Pull Station

15. Cooking Appliances

16. Motorized Balancing Dampers

17. Hood Specific Air Flow Control

18. Area Temperature Monitoring

19. Variable Frequency Drives (VFDs). DemandAire Platinum DCKV Systems require VFDs. The VFDs can be supplied by Streivor or purchased separately. VFDs can be installed inside of the DemandAire control panel or installed in
a remote enclosure.
